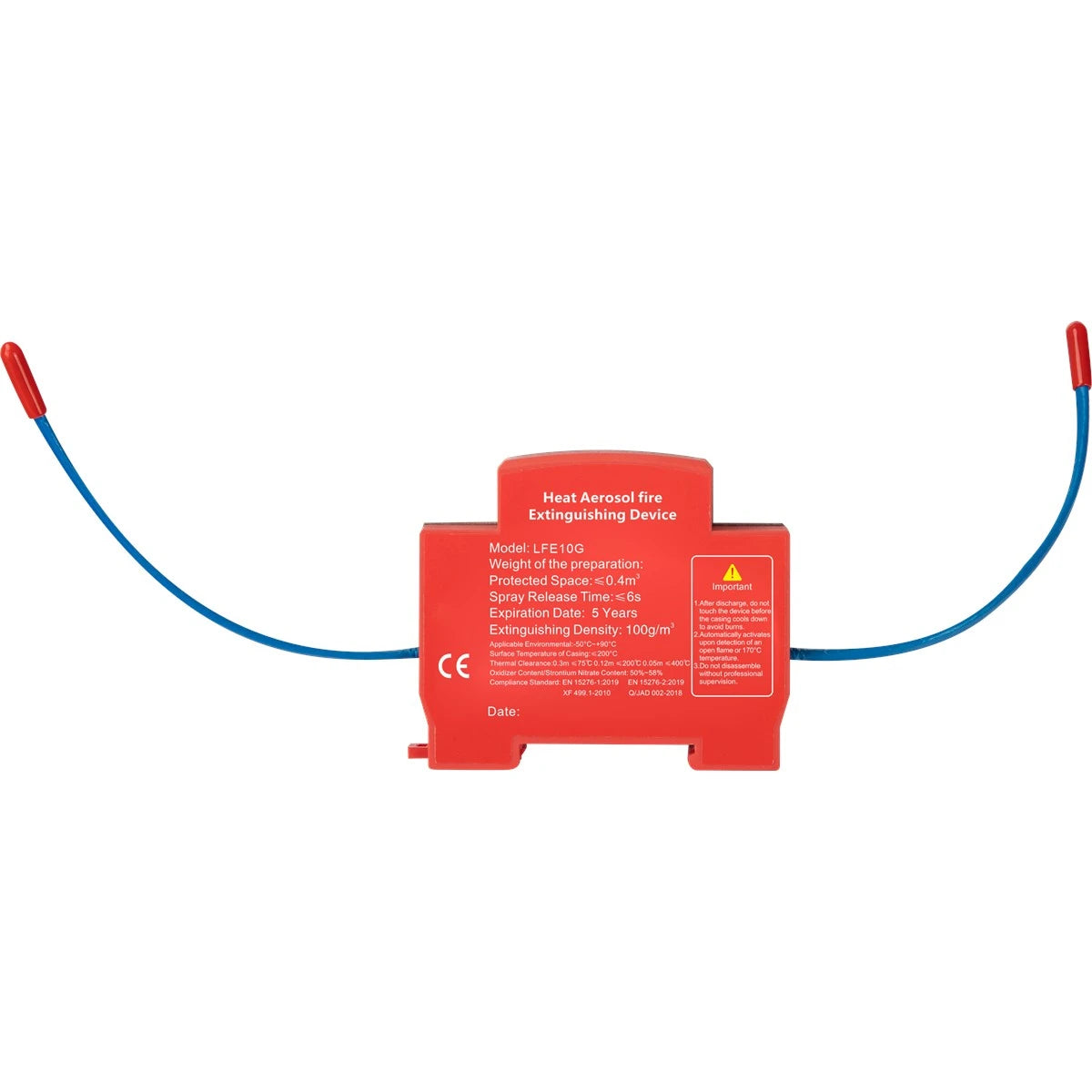

Live LFE10G Din Rail Aerosol Fire Extinguisher Device

Overview

The LFE10G Heat Aerosol Fire Extinguishing Device is a compact automatic fire suppression solution designed to protect consumer units electrical panels and small enclosures from fire. Installed directly onto a 35 mm DIN rail the device activates automatically when temperatures reach 170C releasing a fire extinguishing aerosol that rapidly suppresses flames and prevents fire spread. Ideal for electrical cabinets and distribution boards the LFE10G provides maintenance free protection for up to 10 years making it a reliable safety upgrade for residential commercial and industrial electrical installations.

Key Features

• Automatic heat activation at 170C

• 3M adhesive for mounting on surfaces

• DIN rail mounted for easy installation in consumer units

• Rapid aerosol fire suppression in under 6 seconds

• Protects small enclosed spaces up to 0.4 m3

• Compact space saving design

• Maintenance free with 10 year service life

• Complies with BS EN 15276 fire suppression standards

• Type Heat Aerosol Fire Extinguishing Device

• Activation Temperature 170C

• Extinguishing Agent 10 g aerosol compound

• Discharge Time Less than 6 seconds
• Maximum Protected Volume 0.4 m3

• Mounting 35 mm DIN Rail

• Dimensions 77 mm H x 19 mm W x 65 mm D

• Operating Temperature minus 50C to plus 90C

• Service Life 10 years

• Standards BS EN 15276 1 and BS EN 15276 2
