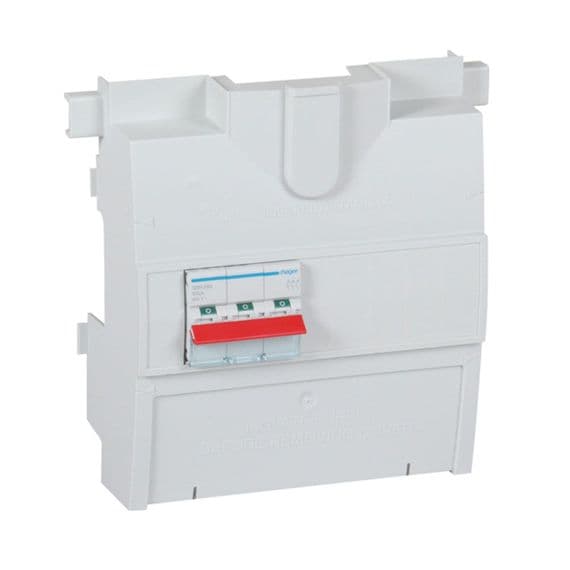

Hager JK11253S 125A 3 Pole Mains Switch Incomer Kit

Hager JK11253S
Invicta 3 125A 3 Pole Incomer Switch Kit

A. 1 x Terminal Shield
B. 1 x SBN399 125A 3 Pole Modular Switch / Isolator and DIN Rail
C. 4 x Incomer links
D. 3 x M5 Carp Nuts
E. 1 x Caged Terminal and M6 Carp Nut

Hager JK 3 pole Invicta Incomer Kit

Installation Instructions
Locate the income switch (A) onto the left side of the Din rail (B), and fit the L1, L2 and L3 incomer links. Ensure that the links' teeth are within the top terminal of the incomer switch.
Incomer Installation Instructions 1
Ensure that the caged neutral link (C) is secured to the neutral cross link using the M6 carp nut and tightened to 5Nm. use the M5 carp nuts for the phase connections are tightened to 5Nm. Ensure that all terminal connections on incomer switch (D) connections are tightened to 3.5Nm. Ensure the connections on the busbar links (E) are to 5Nm (3 x Phase and Neutral).

Incomer Installation Instructions 2

After terminating incoming cables fix the main incomer shroud (F) to the clip in fixing points (G).

Incomer Installation Instructions 3
Suitable for use with all Hager Invicta 3 Phase 125A Distribution Boards

Hager JK11253S 125A 3 Phase Mains Isolator Incomer Kit
£53.54 ex vat
£64.25 inc vat
